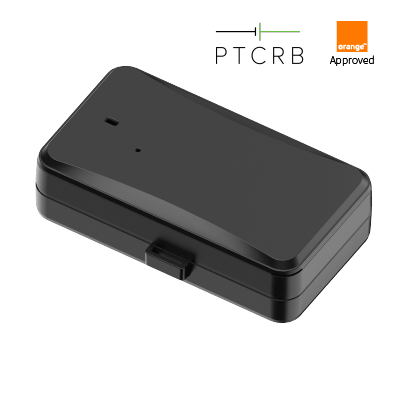

JM-LL01

LTE Cat M1 & NB2 Asset GNSS Tracker

The JM-LL01 is a Cat M1/NB-IoT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

* The label is associated to devices which have been tested end-to-end by Orange in the laboratories.

JM-LL01
LTE Cat M1 & NB2 Asset GNSS Tracker

The JM-LL01 is a Cat M1/NB-IoT asset tracker with ultra-long standby time. Depending on reporting frequency, its low consumption internal battery can provide up to 3 years of working time on a single charge. The JM-LL01’s strong magnetic mount allows for effortless installation onto almost any metal surface, and a light sensor will be triggered and an alert sent once detachment occurs, helping users to feel totally assured that their assets are under constant protection.

* The label is associated to devices which have been tested end-to-end by Orange in the laboratories.

FEATURES
SPECIFICATIONS
DOWNLOADS
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
LTE Cat M1_NB2 & GSM、LTE & GSM Network
LTE Cat M1/NB2 & GSM
Communications over IoT-specific LTE networks, with reliable 2G GSM fallback.
6,000mAh Rechargeable Battery、10,000mAh Rechargeable Battery、2,500mAh Rechargeable Battery
10,000mAh Rechargeable Battery
High-capacity battery is ideal for long standby applications, and is easily recharged for re-deployment.
Tamper Alert、Cover Dismantlement Alarm
Tamper Alert
Receive a tamper alert when the light sensor detects device removal.
IP65 Dust & Water Resistance
IP65 Dust and Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)
Bluetooth Configuration
Fast and simple device configuration via app for iOS.
Strong Magnetic Base
Strong Magnetic Base
Fast and easy installation via strong magnetic mount or eyelets.
Multiple Working Modes
Multiple Working Modes
Configurable working modes according to your actual demands.
GNSS
Positioning system GPS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤40sec
Cellular
Communication network LTE/EGPRS
Frequency LTE Cat M1/NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28/B66
EGPRS: 850/900/1800/1900 MHz
Power
Battery 10,000mAh/3.7V industrial-grade Li-Polymer battery
Working modes Mode 0: Standby mode
Mode 1: Tracking mode
Mode 2: Power-saving mode
Standby time Up to 3 years in power-saving mode
Interface
LED indication 1 status indicator (Red), 4 battery indicators (Blue)
SIM Standard-SIM
Data storage 32+32Mb
Tamper proof Light sensor
Physical specification
Dimensions 109.0 x 61.0 x 30.5mm
Weight 297g
Operating environment
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IP65
Feature
Certificates FCC, CE, PTCRB, AT&T, TELEC
Sensors 3-Axis Accelerometer
Scenarios Low battery alert, Tamper alert, Vibrating Alert, Over-speed alert, Cover removal alert, Installation alert, Geo-fence

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.

APPLICATIONS
Vehicle Rental
Fleet Management
Logistics
APPLICATIONS
Vehicle Rental
Fleet Management
Logistics

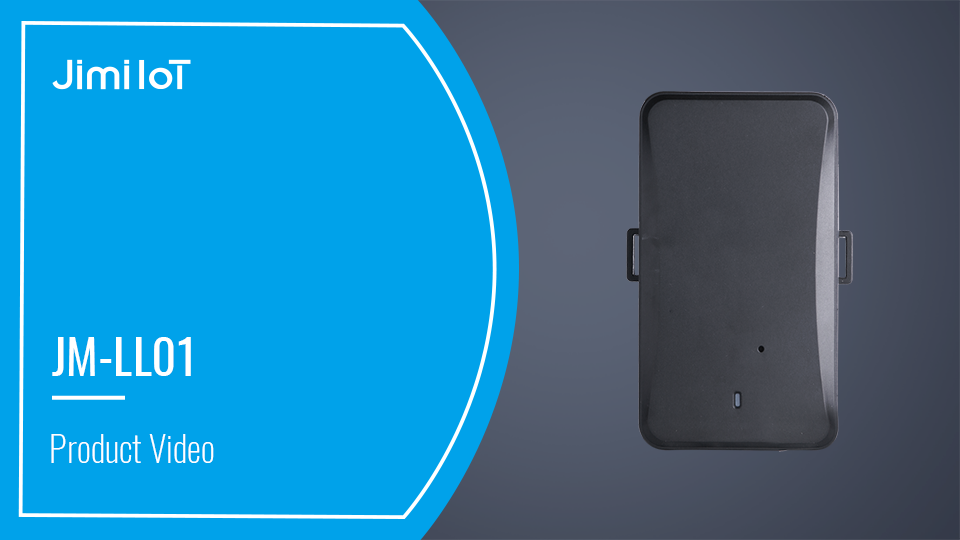

VIDEO
