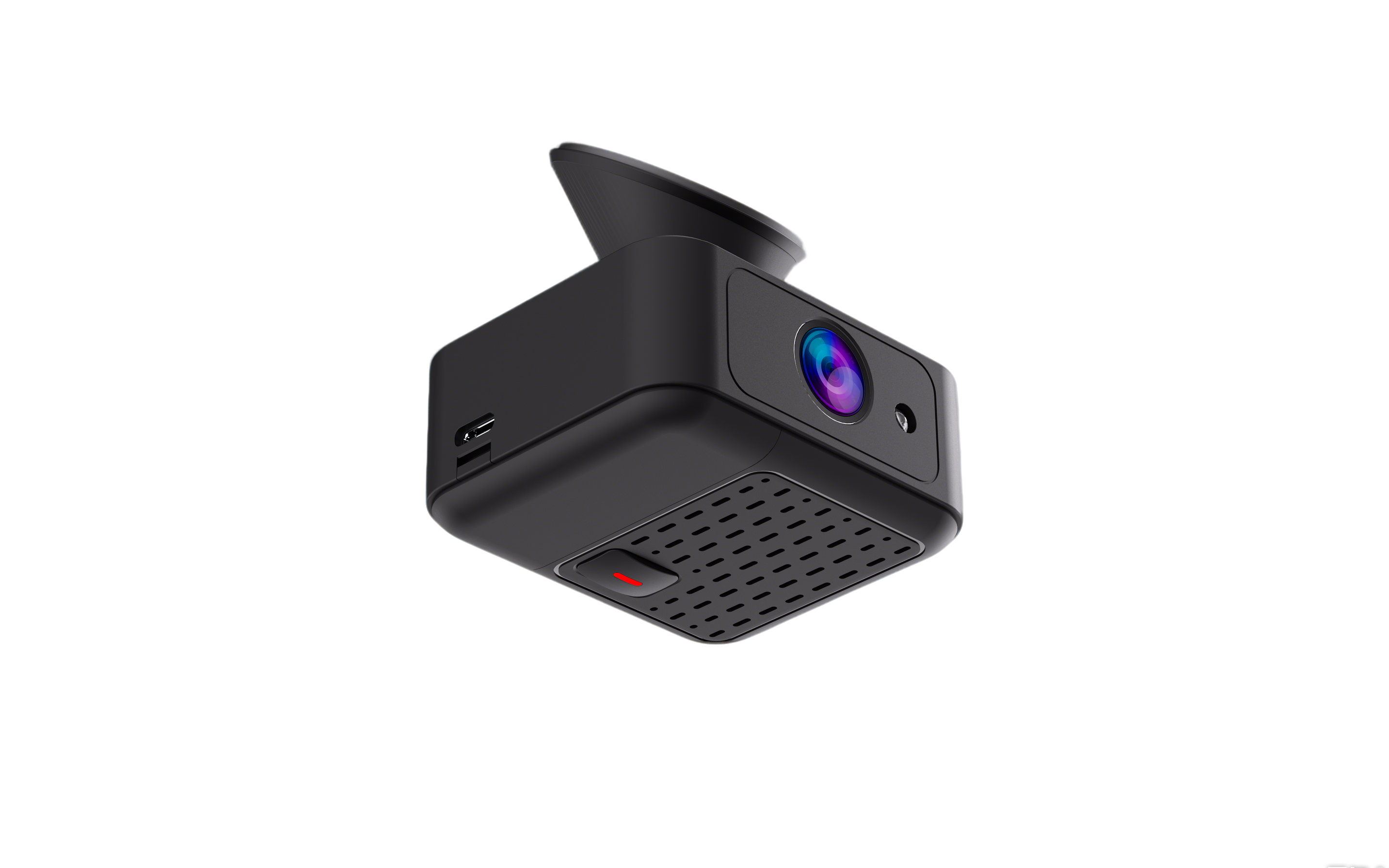

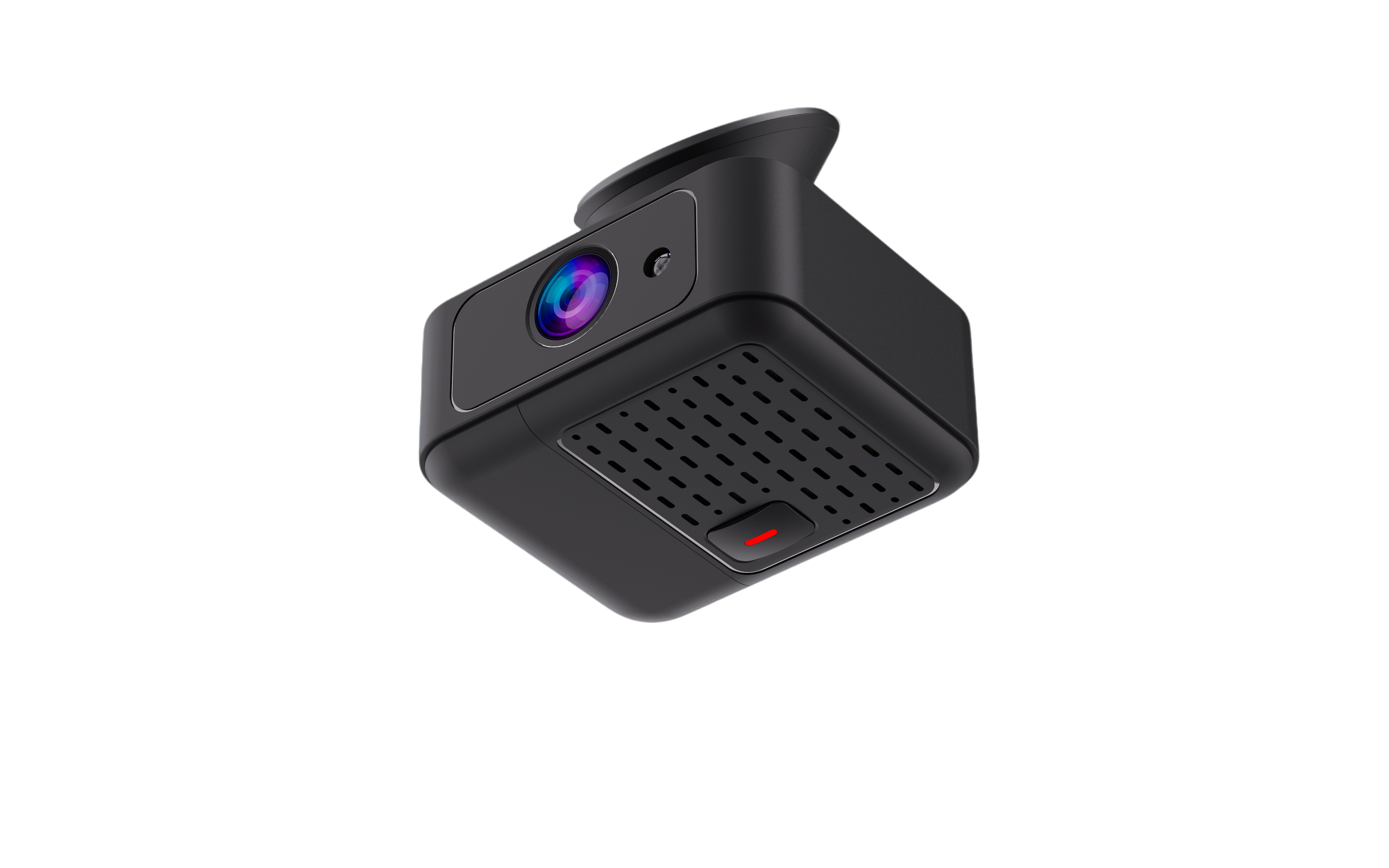

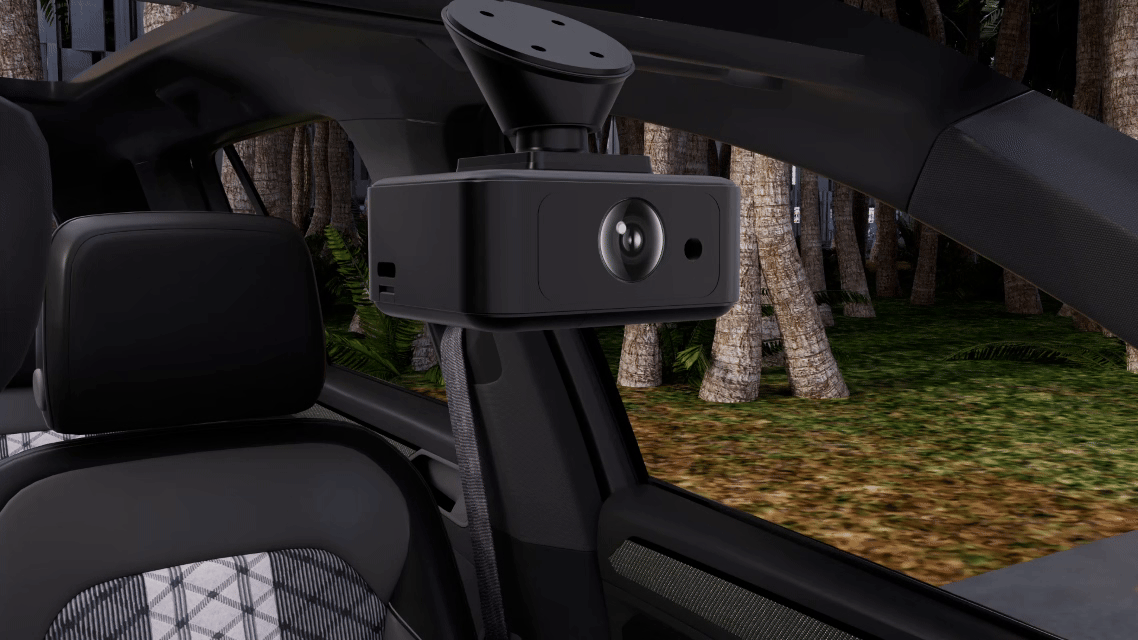

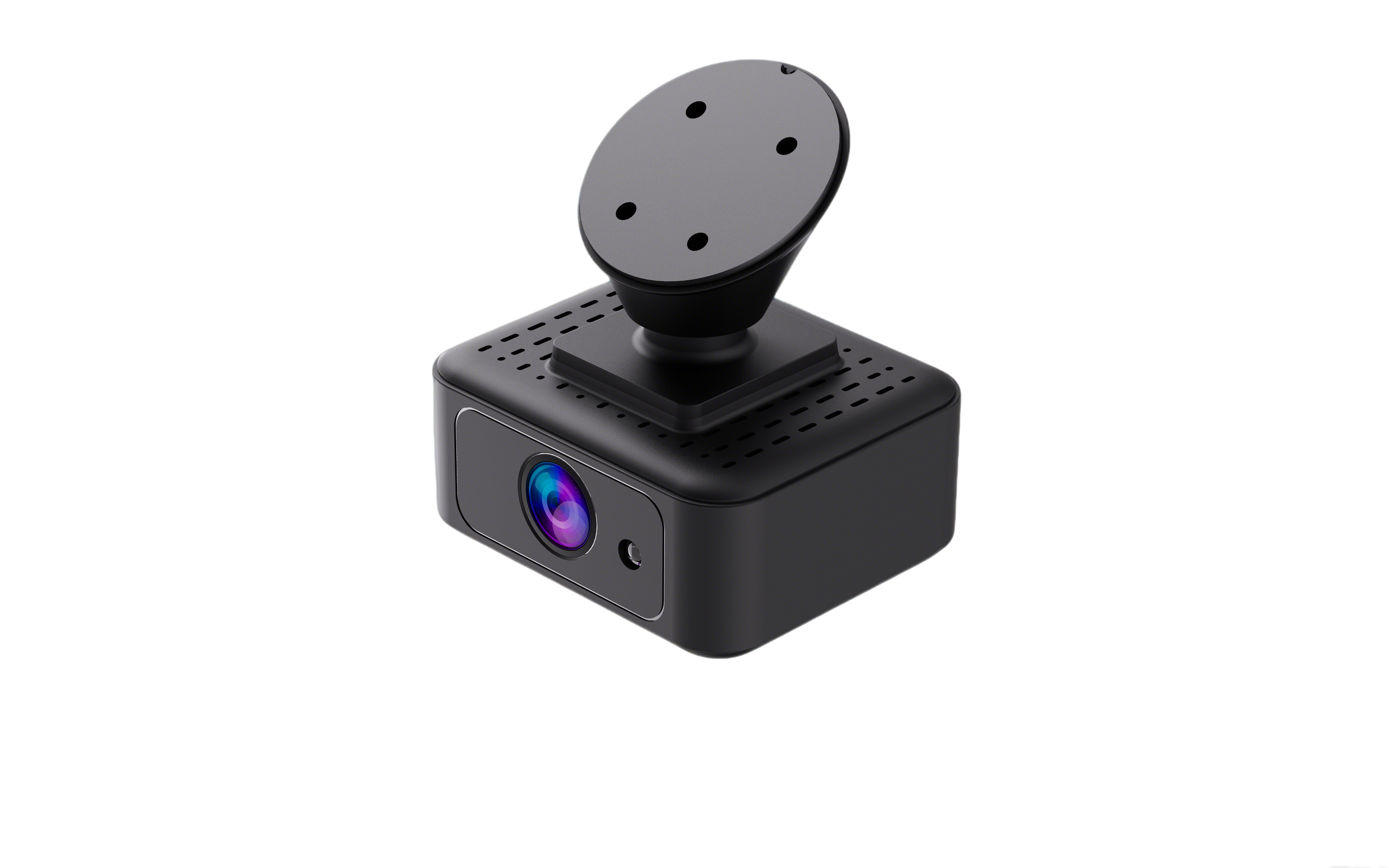

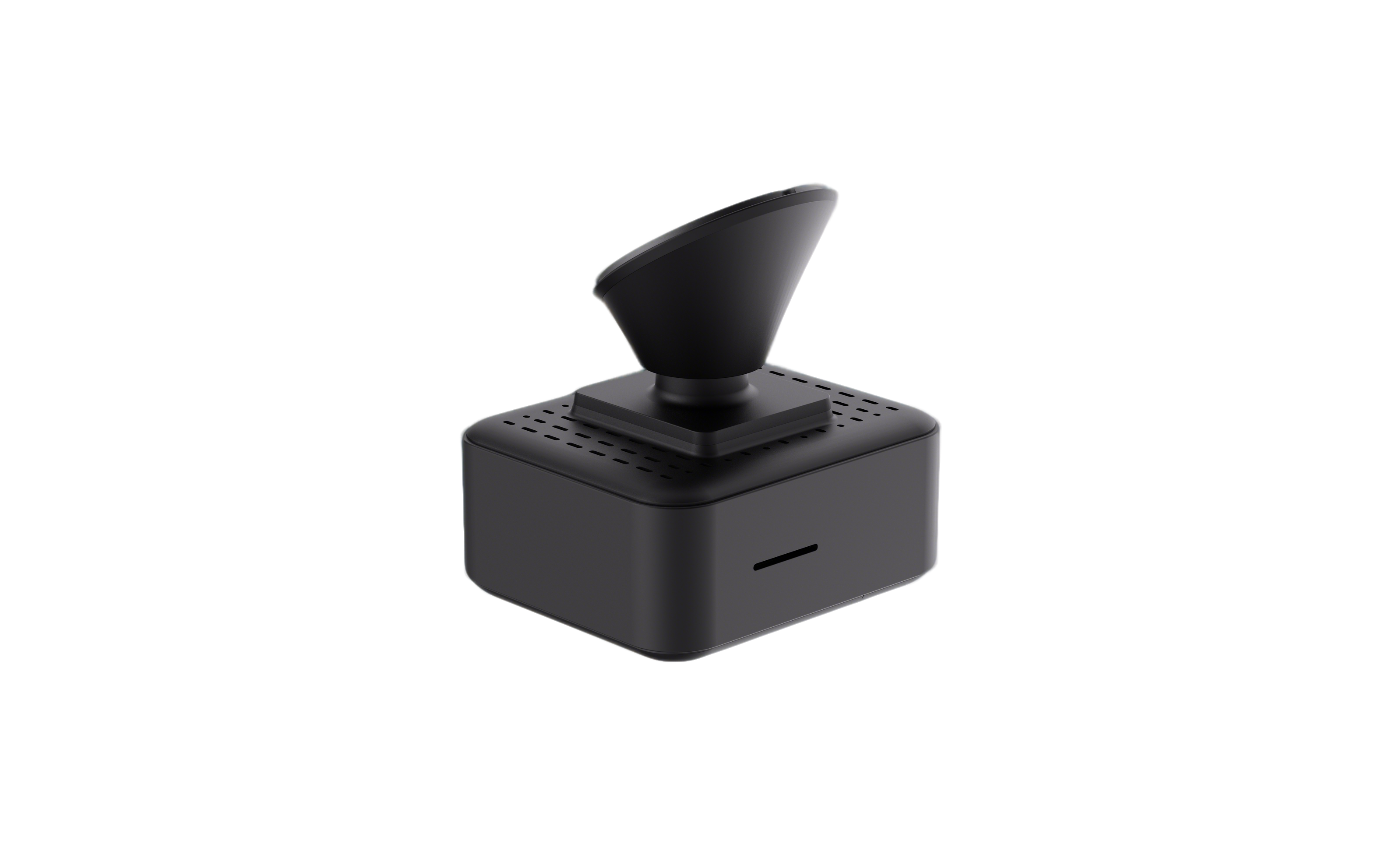

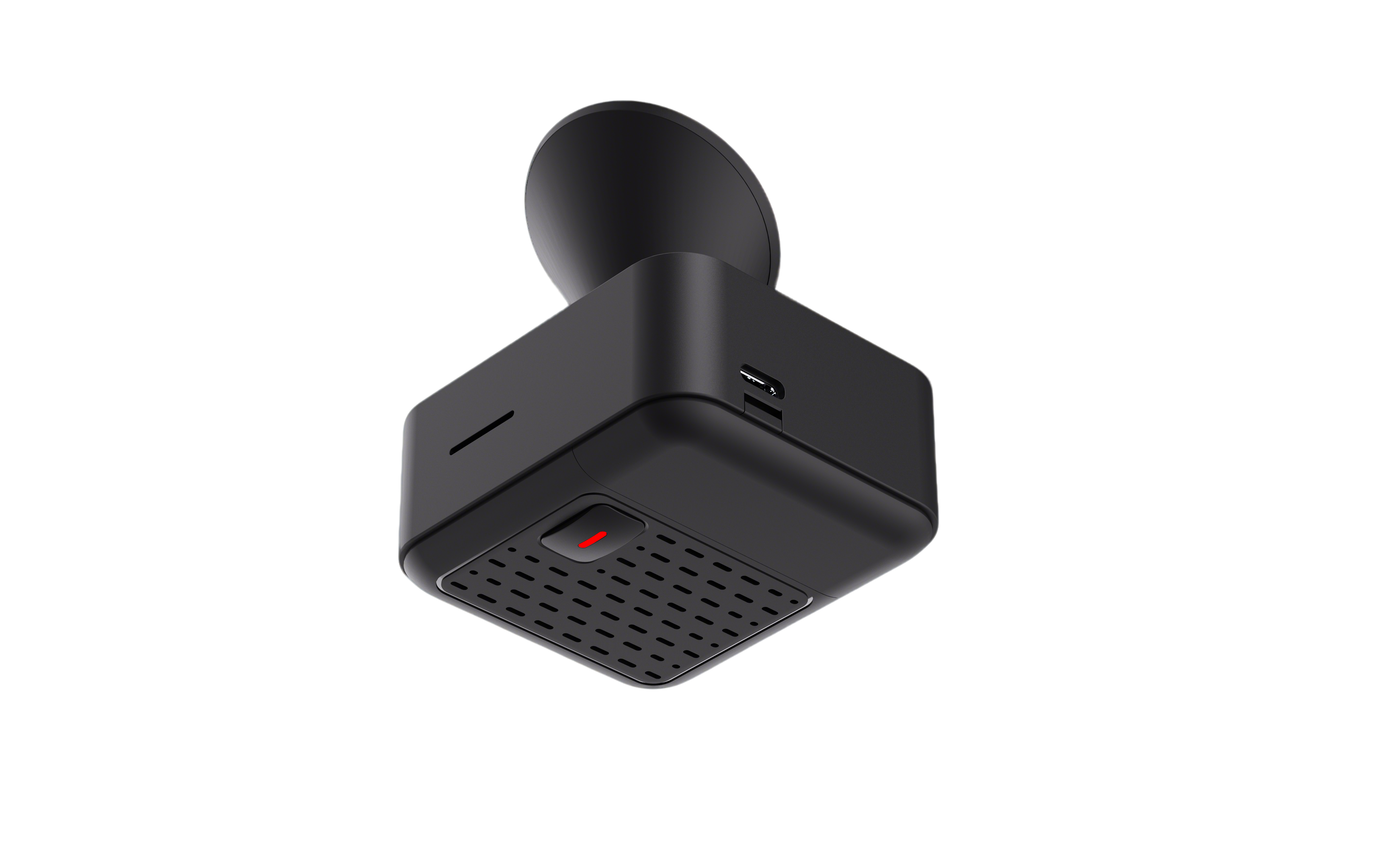

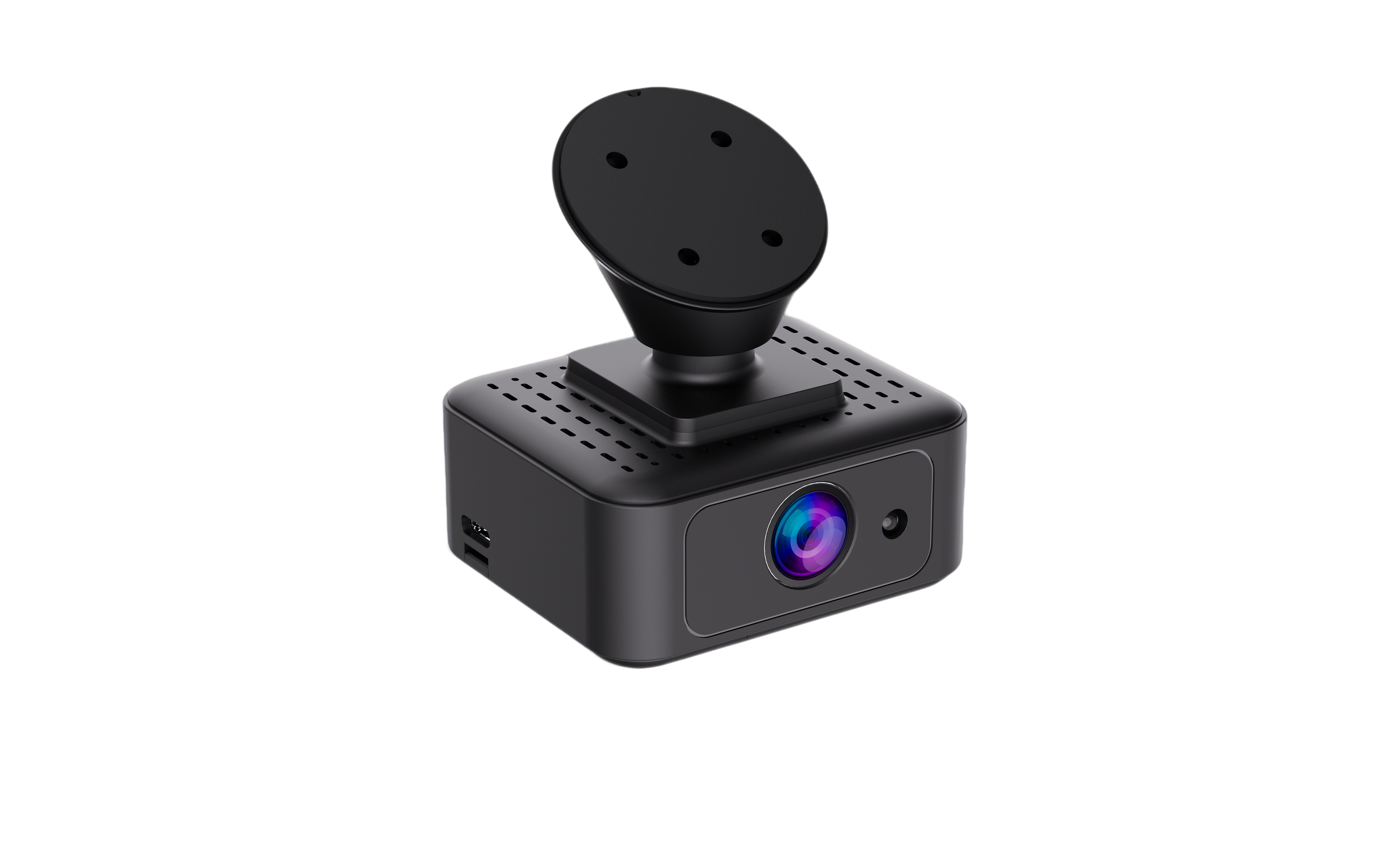

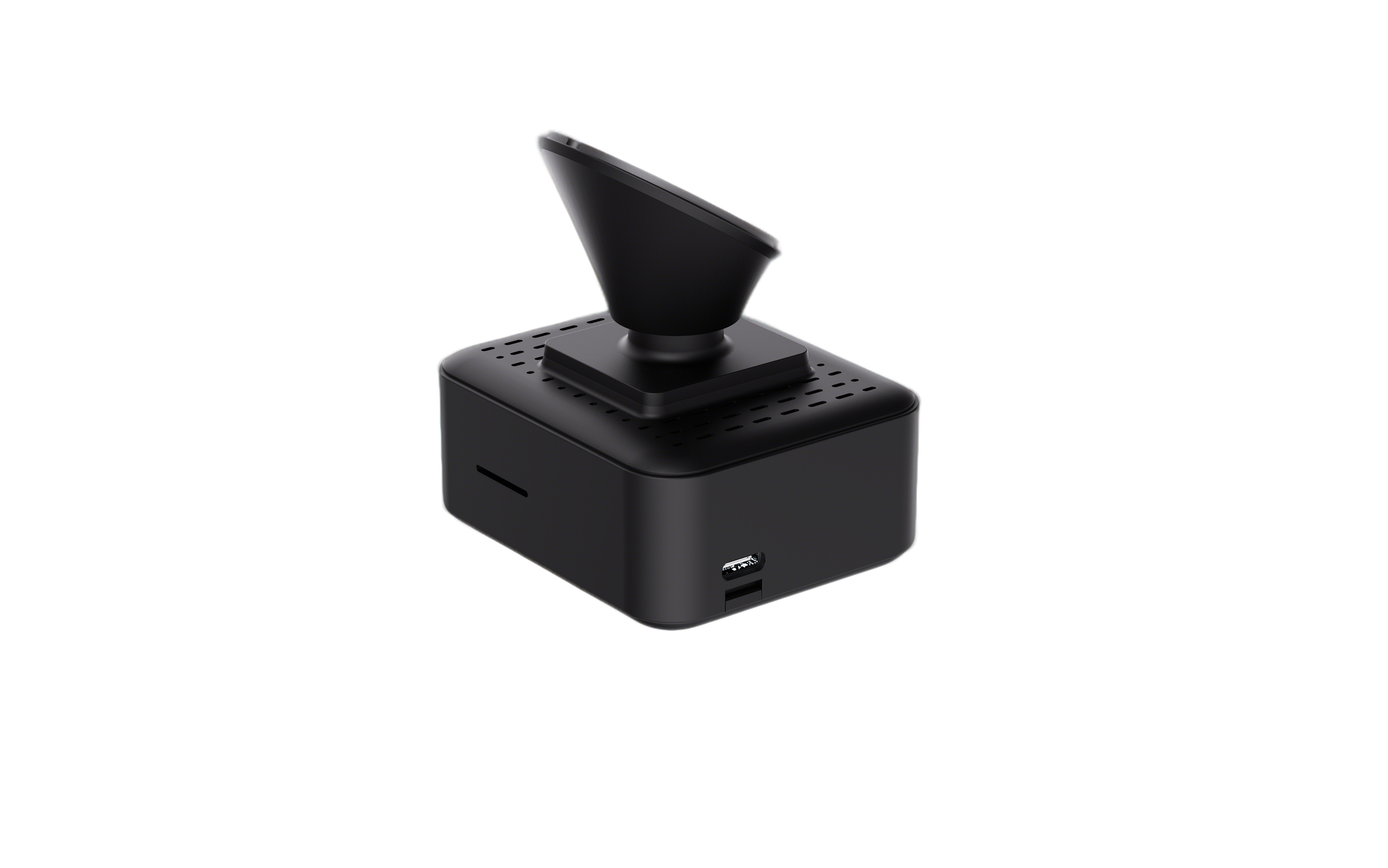

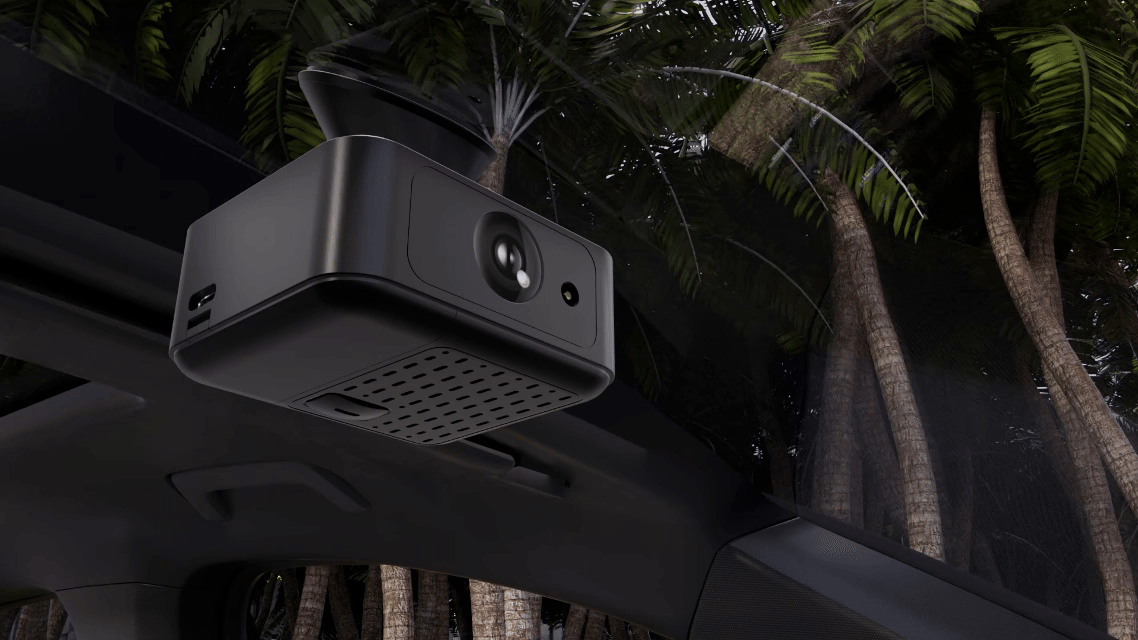

The JC182, designed for private cars, is a road-facing camera that integrates positioning and video functions. Its internal 4G and GNSS modules enable real-time location reporting and continuous recording of your drives. With a designated app, you can leverage this data to effortlessly find parked cars in crowded areas, track vehicles on the go, and set up geofence alerts to notify of possible theft. Furthermore, the app can also provide valuable evidence on the spot in case of accidents, enhancing your overall vehicle safety.
















The JC182, designed for private cars, is a road-facing camera that integrates positioning and video functions. Its internal 4G and GNSS modules enable real-time location reporting and continuous recording of your drives. With a designated app, you can leverage this data to effortlessly find parked cars in crowded areas, track vehicles on the go, and set up geofence alerts to notify of possible theft. Furthermore, the app can also provide valuable evidence on the spot in case of accidents, enhancing your overall vehicle safety.




Cellular | |
Technology | 4G LTE Cat 1 |
Frequency |
LTE-FDD: Band 1/3/7/8/20/28 LTE-TDD: Band 34/38/40 |
Interface | |
LED indication | Red (Power), Blue (Cellular), Green (GNSS) |
SIM | Nano-SIM |
External memory | TF card (up to 256GB) |
USB | Type-C |
WiFi | 2.4GHz, Support WiFi Direct |
Microphone | Support |
Speaker | Support |
Sensor | 3-Axis accelerometer |
GNSS | |
Positioning system | GPS, BDS, AGPS |
Camera | |
Front camera (main) | 2560×1440 / 25FPS / F1.8 / Full color / 110° (HFoV) |
Video format | .ts |
Power | |
Input voltage | DC 9–30V |
Operating environment | |
Operating temperature | –20°C to +65°C |
Storage temperature | –30°C to +85°C |
Physical specification | |

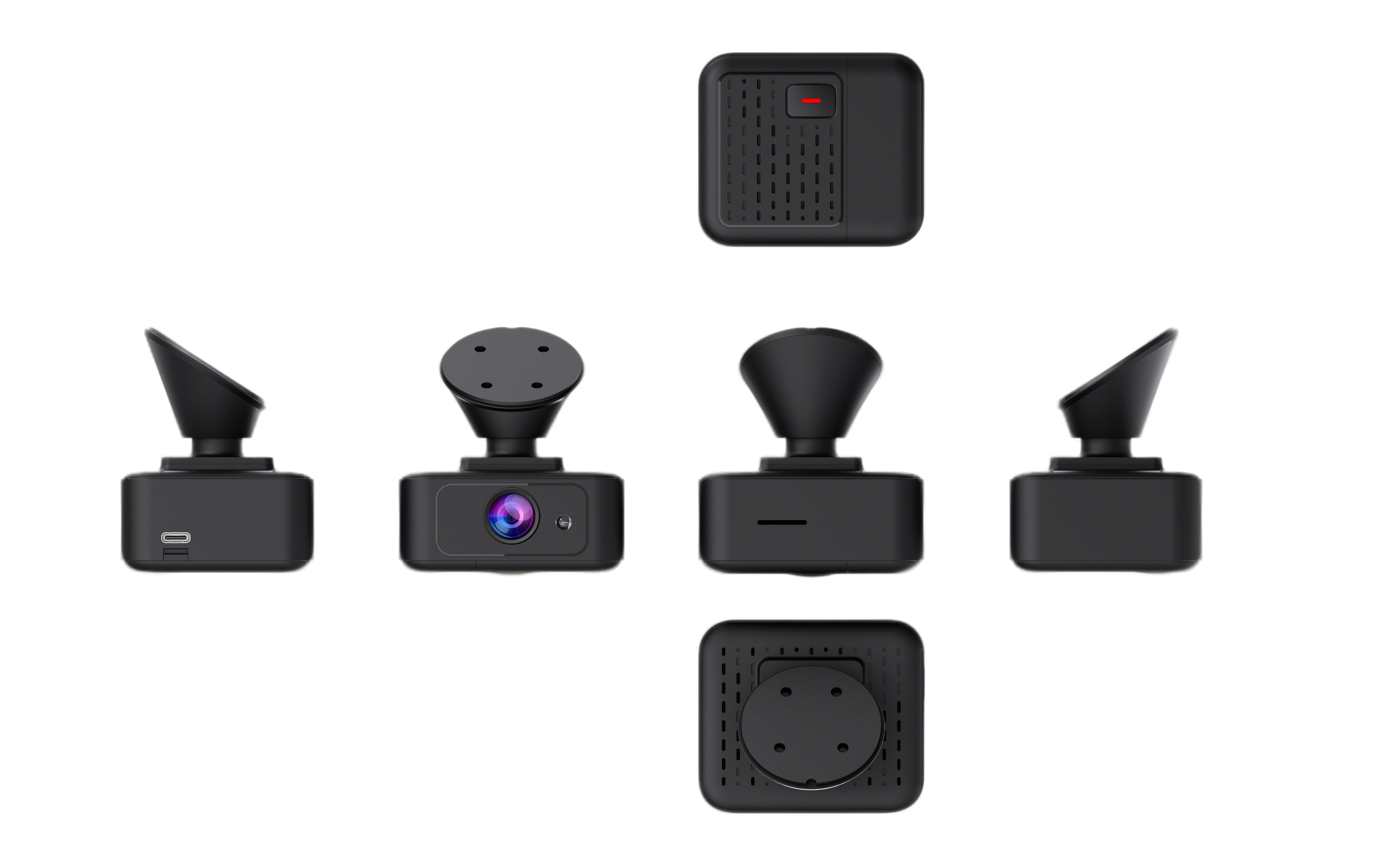

Dimensions | 66.0 x 58.0 x 30.0mm |
Weight | 110g |
Feature | |
Configuration support | APP, Memory card |
Firmware update | USB Cable, Memory card, OTA |
Certification | CE, FCC |
Standard Packing | |
Main unit | 1 |
Mounting bracket | 1 |
Power cable | 1 |
Static cling film | 1 |
Spare 3M double-sided adhesive tape | 1 |
Quick Start Guide | 1 |
Optional Configuration* | |
N/A |
* Optional Configuration required to be customized or purchased separately.
** We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
