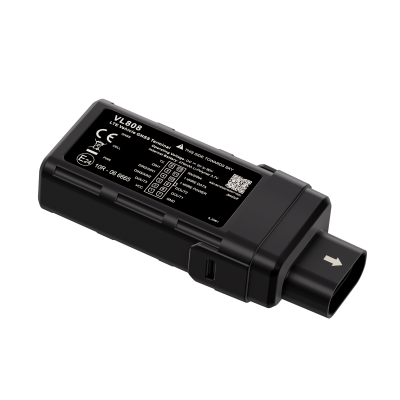

JPThe VL808 is a versatile hardwired tracker with comprehensive tracking capabilities. It features 4G LTE connectivity for fast data transfer and multi-GNSS positioning for precise location tracking. The VL808 goes beyond just cellular connectivity with a 1-Wire interface for various sensor connections, a TTL interface for flexible communication, multiple digital I/Os, and an ADC port for feature expansion. To ensure reliable connectivity even in remote areas, the VL808 supports fallback to GSM (2G) networks. Its IP67-rated housing and wide 9-90V input voltage range make it ideal for use in a variety of environments and in virtually any vehicle.
The VL808 is a versatile hardwired tracker with comprehensive tracking capabilities. It features 4G LTE connectivity for fast data transfer and multi-GNSS positioning for precise location tracking. The VL808 goes beyond just cellular connectivity with a 1-Wire interface for various sensor connections, a TTL interface for flexible communication, multiple digital I/Os, and an ADC port for feature expansion. To ensure reliable connectivity even in remote areas, the VL808 supports fallback to GSM (2G) networks. Its IP67-rated housing and wide 9-90V input voltage range make it ideal for use in a variety of environments and in virtually any vehicle.
FEATURES
SPECIFICATIONS
DOWNLOADS
LTE & GSM Network
Enable data transmission within the coverage of 4G and 2G networks.
1-Wire Peripheral Support
Equip with a 1-Wire interface to allow the connection of compatible temperature sensor and iButton reader for driver identification.
Multiple I/Os for Function Expansion
Equip with 3 digital outputs and 4 digital inputs (where one input multiplexes with TTL-RX) as well as 2 analog I/Os (where they multiplex with the digital I/Os) for flexible function expansion, such as ACC detection, door status detection, SOS alert, and buzzer.
Remote Cut-Off (Fuel/Power)
Immobilize a vehicle by cutting off its power source/fuel supply via an external relay.
Bluetooth Accessory Support
Enable the device to communicate with various Bluetooth accessories such as iBeacon.
Vehicle Battery Protection
Auto-disconnect from the vehicle's battery when the device detects that the voltage of the vehicle battery drops to a preset critical level.
IP67 Water & Dust Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
| Positioning & Location | |
| Technology | GPS, BDS, GLONASS |
| Accuracy | < 2.5m CEP |
| Tracking sensitivity | –165dBm |
| Acquisition sensitivity | –148dBm |
| TTFF (open sky) | Avg. hot start ≤ 2sec Avg. cold start ≤ 38sec |
| Cellular | |
| Technology | LTE Cat 1, 2G (GSM) |
| Frequency | VL808S_EM01 LTE-FDD: B1/B3/B7/B8/B20/B28 LTE-TDD: B34/B38/B39/B40/B41 GSM: B2/B3/B5/B8 |
| Power | |
| Battery | 270mAh//3.7V industrial-grade LiPo battery |
| Input voltage | 9–90VDC |
| Power consumption | Standby: < 10mA |
| Operating environment | |
| Operating temperature | –20℃ to +85℃ |
| Operating humidity | 5% to 95%, non-condensing |
| IP rating | IP67 |
| Physical specification | |
| Dimensions | 109.8 × 43.5 × 24.0mm |
| Weight | 76g |
| Interface | |
| LED indication | GNSS (Blue), Cellular (Green), Power (Red) |
| SIM | Nano-SIM |
| Digital I/Os | 3*Outputs, 4*Inputs (one multiplexes with TTL-RX) |
| Analog I/Os | 2 (AIN1/AIN2: 0-36V) (0-5V: ±0.1V; 5-36V: ±0.2V) (multiplex with digital I/Os) |
| Voltage detection | 0-90V (±0.3V） |
| Memory capacity | 3000+ data entries |
| USB | Type-C |
| GNSS antenna | Internal |
| Bluetooth antenna | Internal |
| Serial ports | 1*TTL |
| Feature | |
| Sensors | Accelerometer |
| Scenarios | Vehicle movement alert, SOS alert, Overspeed alert, Geofence entry/exit alerts, Vehicle battery detection, Door status detection |
| Driving behavior analysis (DBA) | Harsh acceleration, Harsh braking, Harsh cornering, Collision |
| Bluetooth | BLE 5.0 |
| Configuration support | PC Tools, SMS, Tracksolid Pro, Jimi IoT Lab |
| Certification | CE,E-mark |
* Optional Configuration required to be customized or purchased separately.
