LL303 PRO

LTE Solar Powered GNSS Tracker
The LL303 is a 4G solar power GNSS tracker designed for the management of construction vehicles and vessels. With a long standby time

The LL303PRO is a 4G solar-powered tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303PRO a valuable part of your fleet management strategy.

LL303 PRO
LTE Solar Powered GNSS Tracker
The LL303 is a 4G solar power GNSS tracker designed for the management of construction vehicles and vessels. With a long standby time

The LL303PRO is a 4G solar-powered tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303PRO a valuable part of your fleet management strategy.

FEATURES
SPECIFICATIONS
DOWNLOADS
LTE Cat M1_NB2 & GSM、LTE & GSM Network
LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Solar & Magnetic Charging、Solar Powered
Solar & Magnetic Charging
Easy charging via the solar panel and magnetic charger.
IP67 Dust & Water Resistance
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Multiple Alerts
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Multiple Working Modes
Multiple Working Modes
Configurable working modes according to your actual demands.
Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)
Bluetooth Accessory Compatibility (Optional)
Various Bluetooth peripheral accessories allow for monitoring of fuel consumption, door status, etc.
RFID Reader (Optional)
RFID Reader (Optional)
Access the information of devices via the active RFID reader.
Positioning & Location
Technology GPS, BDS, LBS
Accuracy <2.5m CEP
Tracking sensitivity –165dBm
Acquisition sensitivity –148dBm
TTFF (open sky) Avg. hot start ≤1s
Avg. cold start ≤32s
Cellular
Technology LTE Cat 1, LTE Cat M1 & LTE Cat NB2, GSM
Frequency LL303PRO-LA:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8

LL303PRO-EU:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8

LL303PRO-NA:
Cat M1: B2/B4/B5/B12/B13/B25/B26/B66
Cat NB2: B2/B4/B5/B12/B13/B25/B26/B66
GSM: B2/B3/B5/B8

LL303PRO-GB:
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66
Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
GSM: B2/B3/B5/B8

Power
Battery 10,000mAh/3.7V industrial-grade Li-Polymer battery (rechargeable)
Solar power 5V/400mA (Standard Operating Voltage/Current @STC)
STC: Direct illumination with 38,000lux halogen lamp
Magnetic charger 5V/2A
Working modes Mode 1: Timing mode
Mode 2: Intelligent mode
Mode 3: Power-saving mode
Battery life 10 days to 1 year
Interface
LED indication Cellular (Green), Power (Red)
SIM Nano-SIM
Memory capacity 1000 GPS data entries
Tamper proof Hall effect sensor
USB 4-Pin magnetic wire
GNSS antenna Internal
Bluetooth antenna Internal
Operating environment
Operating temperature –20℃ to +70℃
Operating humidity 5% to 95%, non-condensing
IP rating IP67
Physical specification
Dimensions 200.0 x 115.0 x 25.0mm (mount base excluded)
Weight 423g
Feature
Sensors Accelerometer, Buzzer, Hall effect sensor, NTC
Scenarios Low battery alert, Tamper alert, Vibrating alert, SIM card change alert, Temperature & humidity exception alerts (optional)
Bluetooth BLE 5.0
RFID 2.4GHz
Configuration support APP, Tracksolid Pro, PC Tools, SMS
Certification CE, FCC, PTCRB
Standard Packing
LL303PRO unit 1
Charging cable 1
Mount base 1
Screwdriver 1
Ejector pin 1
Self-tapping screw 4
Flat head screw 4
Anti-theft screw 4
Optional Configuration*
Bluetooth sensor K7800 environmental sensor

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
**Optional Configuration required to be customized or purchased separately.

APPLICATIONS
Construction Machinery
Asset & Logistics
Vessel Tracking
APPLICATIONS
Construction Machinery
Asset & Logistics
Vessel Tracking

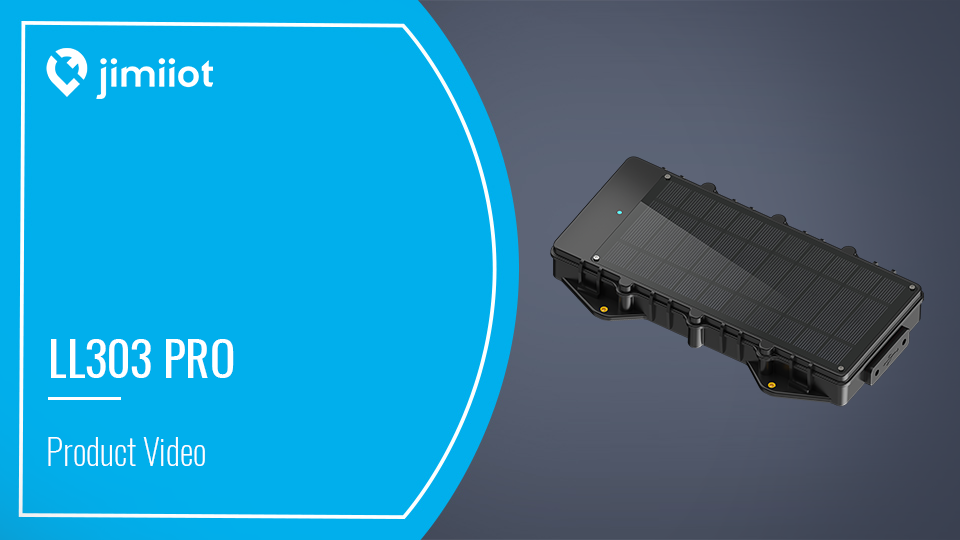

VIDEO
